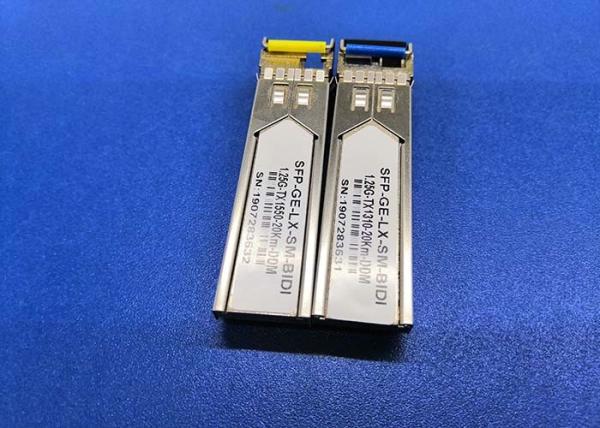

BiDI Gigabit SFP Module 1.25Gb/S LC Single Mode Fiber Module 10KM 1310nm/1550nm
PRODUCT DESCRIPTION
1.25Gbps SFP BIDI 20KM Optical Transceiver Module Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the PIN photo-detector .The module data link up to 40KM in 9/125um single mode fiber.
The transceiver consists of three sections: a LD laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The SFP transceivers are high performance, cost effective modules supporting 1.25Gbps/1.0625Gbps data-rate and 20km transmission distance with SMF.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Applications
NIC network cards
Switches
Routers
VPN equipment
Traffic control device
GAP
Fiber Media Converter
Firewall
Storage device
Telecommunication
Fiber Channel
PRODUCT FEATURES
Data-rate of 1.25Gbps/1.063Gbps operation
1310nm FP laser and 1550nm PIN-TIA for 20km transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
+3.3V single power supply
Operating case temperature:
Commercial : 0 to +70°C
Industrial : -40 to +85°C
Recommended Operating Conditions
| Parameter | Symbol | Unit | Min | Typ | Max |
| Storage Temperature Range | Ts | ℃ | -10 | | 70 |
| Power Supply Voltage | Vcc | V | 3.135 | | 3.465 |
| Data Rate | | Gb/s | - | 1.25 | - |
Specification of Transmitter
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Average Output Power | POUT | -9 | | -3 | dBm | Note (1) |
| Extinction Ratio | ER | 8.2 | | | dB | |
| Center Wavelength | λC | 1260 | 1310 | 1360 | nm | FP Laser |
| | | | | | |
| Spectrum Bandwidth(-20dB) | σ | | | 4 | nm | |
| Differential Line Input Impedance | RIN | 90 | 100 | 110 | Ohm | |
| Output Eye Mask | Compliant with G.959(class 1 laser safety) | | Note (2) |
Note (1): Measure at 2^23-1 NRZ PRBS pattern
Note (2): Transmitter eye mask definition
Specification of Receiver
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Input Optical Wavelength | λIN | 1500 | 1550 | 1580 | nm | |
| Receiver Sensitivity | PIN | | | -24 | dBm | Note (1) |
| Los Of Signal Assert | PA | | | -35 | dBm | |
| Los Of Signal De-assert | PD | -28 | | | dBm | Note (2) |
| LOS Hysteresis | PA-PD | 0.5 | 2 | 6 | dB | |
| Receiver Overload | Pmax -PIN | | | -3 | dBm | |
Note (1): Measured with Light source 1550nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ
Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)
Product Tags:
|
|

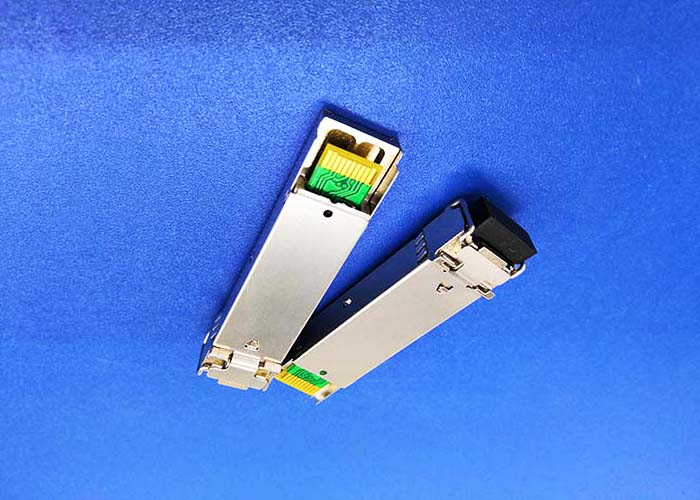

BiDI Gigabit SFP Module 1.25Gb/S LC Single Mode Fiber Module 10KM 1310nm/1550nm Images
|
